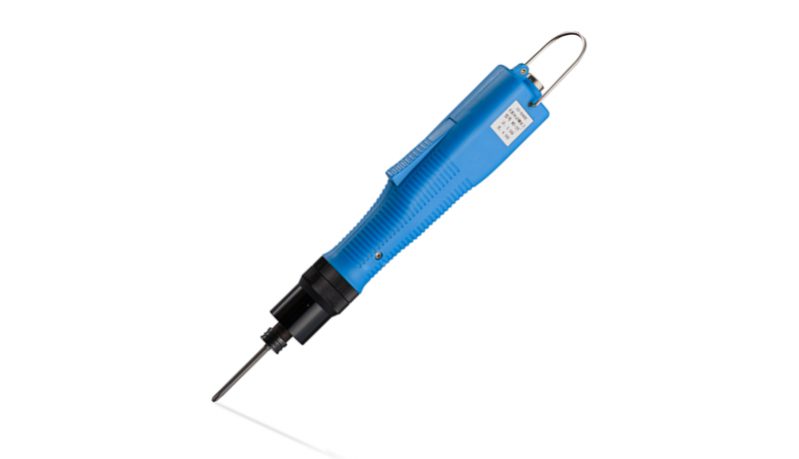

CSEM Series Precision Screwdriver Set

Brushless DC motor, long service life, maintenance-free, stable torque output, suitable for the clean operating environment, high stability, easy operation.

Small size, light-weight, ergonomically designed, high temperature-resistant, vibrating-resistant, friendly holder, light, good operation. Best applied to Copiers, printers, home appliances, etc.

Conform to Standard of CCC, optional ESD housing for all models. For use with vacuum suction nozzle: Vacuum suction nozzle can be mounted on an electric screwdriver.

And it can help the operator to improve production efficiency and save time. Also, it can remove the dust produced during the operation.

Precision Screwdriver Set Specification

Additional Parts

  • Vacuum Nozzle
  • Audible Alarm
  • Elbowed Head
  • Sleeve Sensing Sensor
  • Z-type Head
  • Photoelectric Sensors

Contact Information

For more customized product requirements or electric screwdriver related issues, contact us now!

NO.69 Wangsheng Road, Wangzhuang, Shanghu, Changshu, Jiangsu, China

Message Us

Your Name:

Your telephone number:

Email:

Your Message

Request
Included All Additional Parts
Specification 2000rpm, Standard
Starting Mode Lever/Push
Torque Range (N.m) 0.29~2.45
Speed Deviation ± 10%
Torque Adjustment Stepless
Torque Deviation ±5%
Free Speed 850, 1200, 2000
Tapping Screw 2.6~4.0
Machine Screw 2.6~5.0
Handle Diameter (mm) Ø33
Length (mm) 250
Weight (g) <600
Bit Type A/B/C/D, A/B/D
Power Supply CS-100C
